Overview
The Pixelhue P10 is the entry model in the P Series of FPGA-based presentation switchers, aimed at small and mid-size live events. The input bank gives you 6 inputs total: 4x DP 1.2 / HDMI 2.0 (connector type selectable per input at any given time) plus 2x 12G-SDI with loop-through. Outputs are 2x HDMI 2.0 4K (up to 4096x2160@60Hz HDR, HDCP 2.2) plus 6x HDMI 1.3 for legacy / secondary destinations. 10G OPT fiber extends a copy of the HDMI program up to 10 km on single-mode. The compositing engine handles up to 2x MAIN DL + 4x PIP DL layers (or 1x MAIN 4K + 2x PIP 4K). Advanced DSK is included with Smart key, Luma key, and Chroma key support. Image processing is real 4K60p 4:4:4 10/12-bit FPGA; same control surface, BKG/LOGO storage, AUX outputs, dual Gigabit Ethernet control, and Genlock as the rest of the P Series. The P10 ships at 7.9 kg net (20.6 kg with flight case). Choose the P10 over the P20 when you need fewer 4K layers on screen at once and want lower weight/cost; and over the P20-DS when you don't need 12G-SDI output or Dante audio.

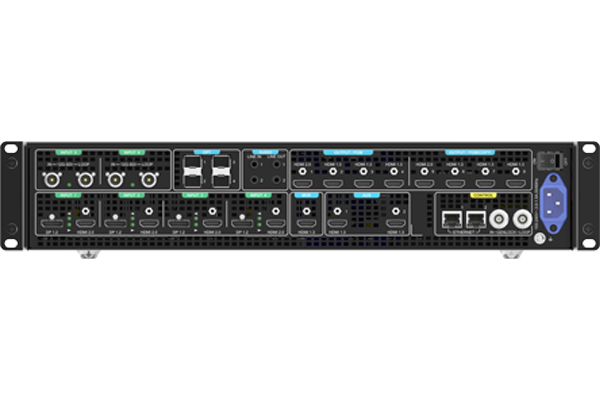

P10
INPUT 5
IN-12G-SDI-LOOP
INPUT 6
IN-12G-SDI-LOOP
OPT
AUDIO
LINE IN
1
2
LINE OUT
1
2
OUTPUT / PGM
1HDMI 2.0
2HDMI 1.3
3HDMI 1.3
4HDMI 1.3
OUTPUT / PGM (COPY)
5HDMI 2.0
6HDMI 1.3
7HDMI 1.3
8HDMI 1.3
INPUT 1
DP 1.2
HDMI 2.0
INPUT 2
DP 1.2
HDMI 2.0
INPUT 3
DP 1.2
HDMI 2.0
INPUT 4
DP 1.2
HDMI 2.0
MVR
HDMI 1.3
AUX
1HDMI 1.3
2HDMI 1.3
CONTROL
1
2
ETHERNETIN-GENLOCK-LOOP
How the OUTPUT · PGM layout works
What is a PGM? “PGM” is short for Program — the finished, composited video the switcher sends out to a display.
How many unique PGMs does the P10 produce? One. The layer engine composites your sources into a single program. That program is then distributed across two OUTPUT slots:
- OUTPUT / PGM — primary: 1× HDMI 2.0 (4K@60 HDR) + 3× HDMI 1.3 (HD / 2K)
- OUTPUT / PGM (Copy) — hardware copy: 1× HDMI 2.0 + 3× HDMI 1.3
Why this mix? The HDMI 2.0 outputs feed your main LED wall at full 4K@60Hz with HDR. The HDMI 1.3 ports feed lower-rate destinations like confidence monitors, recorders, or auxiliary screens — all derived from the same program, no external splitter needed.
Hardware Details
Authoritative connector + behavior reference, sourced from the official Pixelhue user manual (V2.0.0). Tap any section to expand.
All inputs
- INPUT 1–4: each slot has one DP 1.2 + one HDMI 2.0 connector. Selectable per input — when both connectors have signals, only one can be the active source at a time.
- INPUT 5 & 6: two 12G-SDI IN & LOOP connectors each. The IN takes the signal; the LOOP passes it through unchanged for daisy-chaining.
Outputs 1–8 (HDMI 2.0 × 2 + HDMI 1.3 × 6)
The P10 provides 8 HDMI output connectors: 2× HDMI 2.0 (connectors 1 and 5, for the 4K program signal) + 6× HDMI 1.3 (connectors 2, 3, 4, 6, 7, 8, for HD/2K distribution).
- 4K · Switcher mode — Connector 1 is the primary 4K output; connector 5 copies connector 1.
- 4K · PGM-only mode — Connectors 1 and 5 both work as primary 4K outputs and share the same resolution.
- SL · Switcher mode — Connectors 1–4 are primary; 5–8 copy 1–4 respectively. Connectors 1, 2, 3, 4 all share the same resolution.
- SL · PGM-only mode — All 8 connectors work as primary at the same resolution.
OPT 1–4 (optical fiber outputs) — layer modes
Four 10G SFP+ optical fiber ports that copy the HDMI program output. How they map to HDMI depends on the layer mode:
4K — Switcher mode
| OPT 1 | copies left half of HDMI 1 |
|---|---|
| OPT 2 | copies right half of HDMI 1 |
| OPT 3 | copies left half of HDMI 1 |
| OPT 4 | copies right half of HDMI 1 |
4K — PGM-only mode
| OPT 1 | copies left half of HDMI 1 |
|---|---|
| OPT 2 | copies right half of HDMI 1 |
| OPT 3 | copies left half of HDMI 5 |
| OPT 4 | copies right half of HDMI 5 |
SL — Switcher mode
| OPT 1 | copies HDMI 1 and HDMI 2 |
|---|---|
| OPT 2 | copies HDMI 3 and HDMI 4 |
| OPT 3 | copies HDMI 1 and HDMI 2 |
| OPT 4 | copies HDMI 3 and HDMI 4 |
SL — PGM-only mode
| OPT 1 | copies HDMI 1 and HDMI 2 |
|---|---|
| OPT 2 | copies HDMI 3 and HDMI 4 |
| OPT 3 | copies HDMI 5 and HDMI 6 |
| OPT 4 | copies HDMI 7 and HDMI 8 |
MVR — Multiviewer output (operator monitoring)
1× HDMI 1.3 dedicated to the Multiviewer. Plug a monitor in here and it shows a tiled grid of every input source plus PVW and PGM thumbnails on one display.
The MVR feed never goes to the LED wall. It's a confidence-monitor feed only. Pick from the built-in layout templates.
- Default resolution: 1920×1080 @ 60 Hz
- Frame rate is adjustable
AUX — Auxiliary program outputs (second screens)
2× HDMI 1.3 AUX outputs. Each AUX is its own second program-style output with its own layer engine — pick any input source, PVW, or PGM and stage it independently of what's on the main LED wall.
Typical destinations: teleprompter, lobby display, ISO recorder, streaming encoder.
- Default resolution: 1920×1080 @ 60 Hz
- Maximum resolution: 2048×1152 @ 60 Hz
- Supports interlaced output (1080i, etc.)
Need more than 2 independent aux feeds? The P20 doubles this to 4× AUX.
Audio (future updates)
Four 3.5 mm dual-channel audio jacks (2× line in, 2× line out) are wired on the rear panel. The audio function will be implemented in future firmware updates.
Need working analog audio + networked Dante audio today? Step up to the P20-DS.
CONTROL — Ethernet + Genlock
2× Gigabit Ethernet ports for control and live input view (primary + backup, shared IP address).
Genlock IN + LOOP — BNC sync signal input with loop-through for daisy-chaining.
Input video specs
DP 1.2
- Maximum resolution: 4096×2160@60Hz / 8192×1080@60Hz
- Minimum resolution: 800×600@60Hz
- Maximum width: 8192 px
- Maximum height: 7680 px
- Maximum frame rate: 240 Hz
- EDID management
- HDCP 1.3 compliant
- No support for interlaced video signal
HDMI 2.0
- Maximum resolution: 4096×2160@60Hz / 8192×1080@60Hz
- Minimum resolution: 800×600@60Hz
- Maximum width: 8192 px
- Maximum height: 7680 px
- Maximum frame rate: 240 Hz
- HDR support
- EDID management
- HDCP 2.2 compliant (downward compatible)
- Interlaced video signal supported
12G-SDI
- Supports ST-2082 (12G), ST-2081 (6G), ST-424 (3G), ST-292 (HD)
- Maximum resolution: 4096×2160@60Hz
- Maximum frame rate: 60 Hz
- Interlaced video signal supported
Output video specs
HDMI 2.0
- Maximum resolution: 4096×2160@60Hz / 8192×1080@60Hz
- Minimum resolution: 800×600@60Hz
- Maximum width: 8192 px
- Maximum height: 7680 px
- Maximum frame rate: 240 Hz
- HDR support
- EDID management
- HDCP 2.2 compliant (downward compatible)
- Interlaced video signal supported
HDMI 1.3
- Maximum resolution: 1920×1080@60Hz / 2048×1080@60Hz
- Minimum resolution: 800×600@60Hz
- Maximum width: 2048 px
- Maximum height: 2048 px
- Maximum frame rate: 240 Hz
- EDID management
- HDCP 2.2 compliant (downward compatible)
- Interlaced video signal supported
Specifications
| Model | P10 |
|---|---|
| Inputs | 4x DP 1.2 / HDMI 2.0 (selectable per input — not both at once) 2x 12G-SDI with loop-through |
| HDMI 2.0 Outputs | 2x HDMI 2.0 (max 4096x2160@60Hz, HDR, HDCP 2.2) |
| HDMI 1.3 Outputs | 6x HDMI 1.3 (HD / 2K, HDCP 2.2 compliant) |
| 10G OPT Fiber Output | 4x 10G SFP+ — copies HDMI program, single-mode up to 10 km |
| Layer Capacity | Up to 2x MAIN DL + 4x PIP DL layers (or 1x MAIN 4K + 2x PIP 4K) |
| Image Processing | Real 4K60p 4:4:4 — 8 / 10 / 12-bit FPGA |
| Transitions | Seamless Take / Cut / T-bar, fade and cut effects |
| Multi-Screen | Virtual pixel mapping, mosaic, LCD bezel compensation, projector edge blending, Cut and Fill, multi-screen splicing for uneven divisions |
| Control | Front-panel keys + 5" LCD, PixelFlow software, U5 / U5 Pro console |
| Network | 2x Gigabit Ethernet (primary + backup, shared IP) |
| Sync | Genlock IN + LOOP |
| Net Weight | 7.9 kg (17.4 lbs); 20.6 kg gross with flight case |
| Best For | Mid-size corporate events, houses of worship, conferences, and small-format LED walls where you need 4K processing but not the P20's full multi-PGM workflow. |
| Audio Jacks | 4x 3.5 mm (2x line in + 2x line out) — analog audio working on P20-DS; reserved for future firmware on P10 / P20 |
| Multiviewer | 1x HDMI 1.3 multiviewer — live thumbnails of all inputs + PVW + PGM. Default 1920x1080@60Hz, adjustable frame rate, multiple layout templates |
| Advanced Keying | Downstream Keying (DSK), Smart Key, Luma Key, Chroma Key |
| Supported Color Bit Depth | 8-bit, 10-bit, 12-bit (12-bit at 4096x2160@30Hz, 10-bit at 4096x1080@60Hz, 8-bit at 4096x2160@60Hz) |
| Standard Timings | DMT, CEA, SMPTE (custom resolutions with reduced blanking + HBlank) |
| Presets | Up to 128 complete and relative presets (PVW or PGM load) |
| Dimensions | 482.6 x 493.0 x 94.6 mm (2U rack) |
| Power | 100-240 V~, 50/60 Hz, 3.0-1.5 A |
| Maximum Power Consumption | 82 W |
| Noise Level | 41.9 dB(A) typical at 25 deg C |
| Operating Temperature | 0 deg C to 50 deg C (32 deg F to 122 deg F) |
| Operating Humidity | 0-80% RH non-condensing |
| Storage Temperature | -20 deg C to +60 deg C (-4 deg F to 140 deg F) |
| Storage Humidity | 0-95% RH non-condensing |
| Rack Load Rating | At least 32.0 kg per mount; M5 x 12 screws |
| Reliability | 24/7 stability tested |
| Certifications | FCC, IC, CE, RoHS, KC, CB (Class A device) |
| Outputs | 2x HDMI 2.0 (4K, HDR, HDCP 2.2) 6x HDMI 1.3 (HD / 2K, HDCP 2.2) 4x 10G SFP+ OPT fiber (copies HDMI program) 1x HDMI 1.3 MVR (multiviewer) 2x HDMI 1.3 AUX |
| AUX Outputs | 2x HDMI 1.3 — default 1920x1080@60Hz, max 2048x1152@60Hz, interlaced supported |
| Connector Bandwidth | DP 1.2 / HDMI 2.0: 18 Gbps; 12G-SDI: 11.88 Gbps |
| Output Failover | Software fail-over: a damaged HDMI output can be replaced by a spare connector while the device is running |
| Backgrounds / Logos | BKG loadable from PC or event controller; capture from input or PGM as BKG with adjustable aspect, position, and size. LOGO storage included. |
| Compatibility | Mac mosaic compatibility, Mac EDID compatibility, antistatic protection with configurable duration |
| Control Integration | PixelFlow software, U5 / U5 Pro consoles, Stream Deck (Companion integrated), KeyFrame |
| Mount Orientation | Horizontal only — do not mount vertically or upside down |
| Flight Case Dimensions | 560 x 185 x 727 mm |
Documentation
Official Pixelhue documentation: specifications, release notes, and the full user manual.
| Type | Document | Size | Link |
|---|---|---|---|
| 📄 Specifications | P10 Specifications V1.7.1 | 1.6 MB | Download .pdf |
| 📝 Release Notes | P10 Release Notes V1.8.0 | 1.8 MB | Download .pdf |
| 📘 User Manual | Seamless Switchers, Pixelflow & Event Controllers User Manual V2.0.0 (covers P10, P20, P20-DS, P80, Q8, Pixelflow, U5, U5 Pro) | 26.4 MB | Download .pdf |
