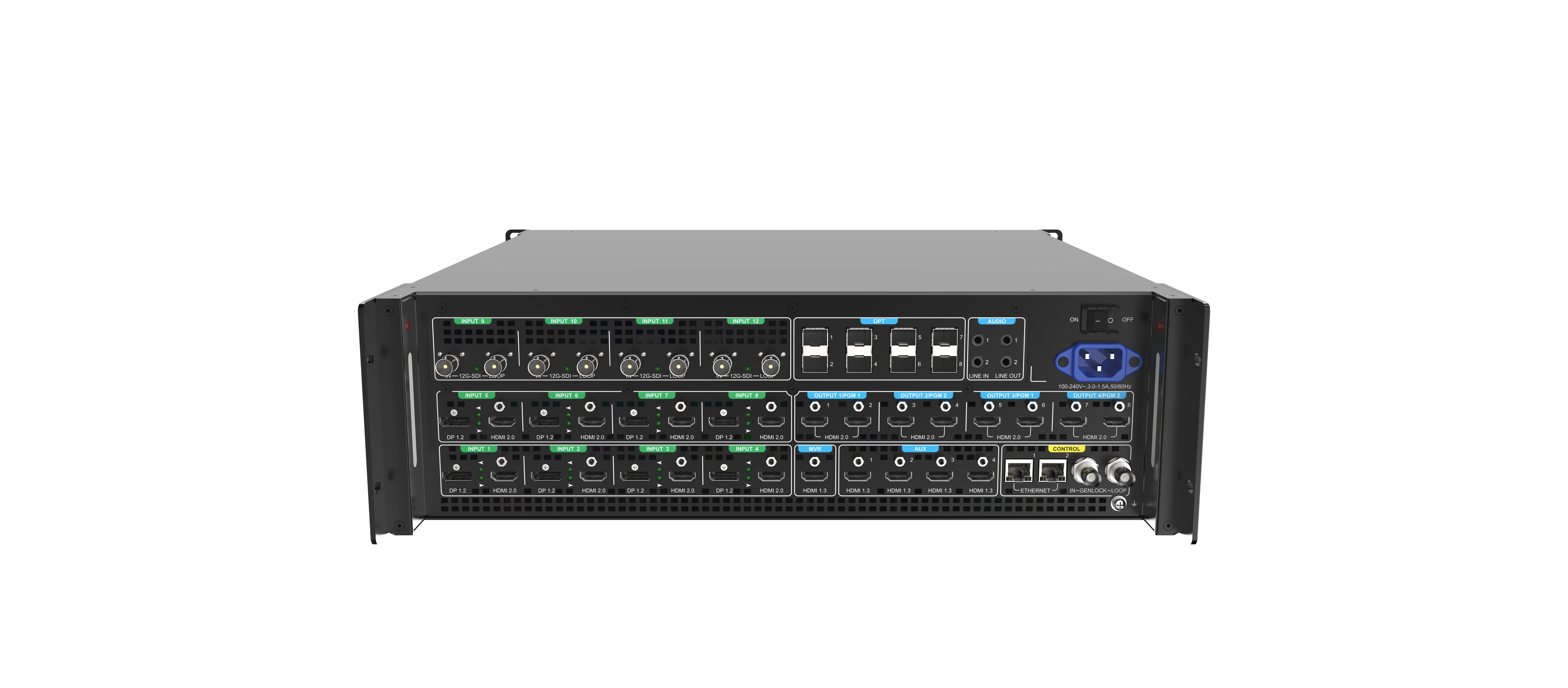

P20

The P20 slot 3 holds the P_4K_12G SDI Audio-OPT Combo Card, which provides:

• 4× 12G-SDI IN & LOOP (INPUT 9 to 12)
• 8× optical fiber output ports (OPT) — routing details below
• 4× 3.5 mm audio jacks: 2× line in + 2× line out. The audio function will be implemented in future firmware updates.

Step up to the P20-DS for working analog audio plus 32×32 Dante (AES67) networked audio and 4× 12G-SDI program output copies.

The remaining seven slots are identical to the P20:

• INPUT 1–8: each slot has one DP 1.2 + one HDMI 2.0 connector. Selectable per input — when both connectors have signals, only one can be the active source at a time (the chassis LED above each port shows which one is live).
• INPUT 9–12: four 12G-SDI inputs with loop-through outputs.

OUTPUTS 1–4 each have 2× HDMI 2.0 connectors. The behavior depends on the layer mode:

• 4K · Switcher mode — Connectors 1 and 5 are primary; connectors 2, 3, 4 copy connector 1, and connectors 6, 7, 8 copy connector 5. The resolutions of connectors 1 and 5 can be set independently.
• 4K · PGM-only mode — Connectors 1, 3, 5, 7 are primary; connectors 2, 4, 6, 8 copy 1, 3, 5, 7 respectively. Connectors 1 and 3 share a resolution group; connectors 5 and 7 share another.
• DL mode (Switcher & PGM-only) — Connectors 1, 3, 5, 7 are primary; connectors 2, 4, 6, 8 copy 1, 3, 5, 7 respectively, in the same resolution groups as above.

1× HDMI 1.3 dedicated to the Multiviewer. Plug a monitor in here and it shows a tiled grid of every input source plus PVW and PGM thumbnails — so the tech at front-of-house can see what's coming in and what's about to go live, all on one display.

The MVR feed never goes to the LED wall. It's a confidence-monitor feed only. Pick from the built-in layout templates; custom MVR layouts are a P80/Q8 feature.

• Default resolution: 1920×1080 @ 60 Hz
• Frame rate is adjustable

4× HDMI 1.3 AUX outputs. Each AUX is its own second program-style output with its own layer engine — pick any input source, PVW, or PGM and stage it independently of what's on the main LED wall.

Typical destinations: teleprompters, stage-side confidence monitors, lobby displays, ISO recorders, streaming encoders, or a separate room. AUX layers can be scaled, cropped, and positioned just like the main PGM layers.

• Default resolution: 1920×1080 @ 60 Hz
• Maximum resolution: 2048×1152 @ 60 Hz
• Supports interlaced output (1080i, etc.)

For 1080p confidence monitoring, use the MVR output above. For up to 4 independent custom feeds (one per teleprompter, recorder, etc.), use these AUX outputs.

2× Gigabit Ethernet ports — for control and live input view. One works as primary, the other as backup; they share the same IP address and have the same function.

GENLOCK IN + LOOP — BNC sync signal input with a loop-through for daisy-chaining the reference to downstream devices.

IEC C14 inlet with a rocker switch. 100–240 V AC, 50/60 Hz.

Two LED work lights with red pushbutton switches on the rear panel — so you can see the connectors during load-in at a dim venue without pulling a flashlight.
