Overview

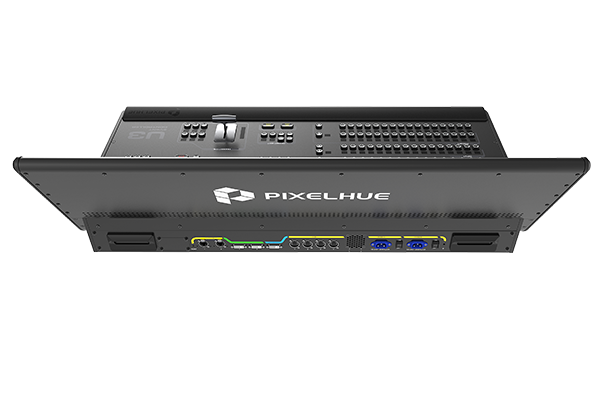

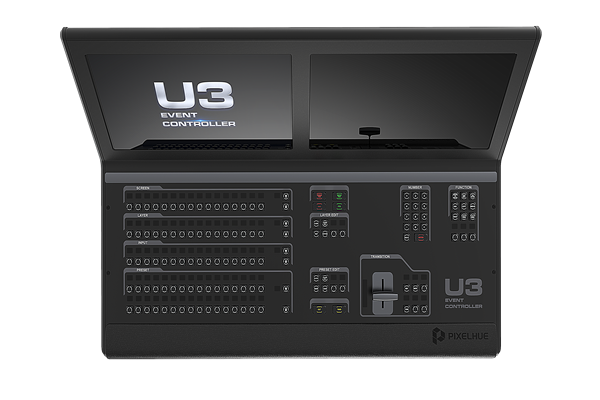

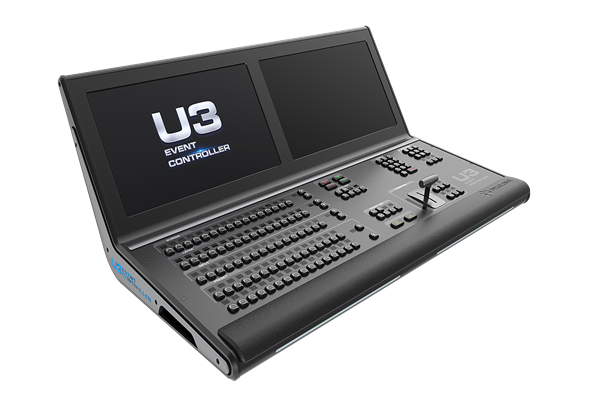

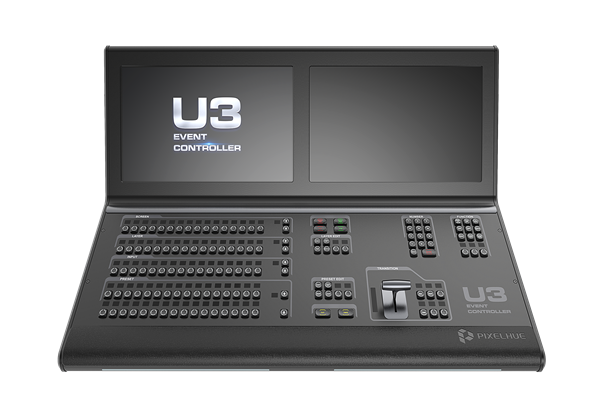

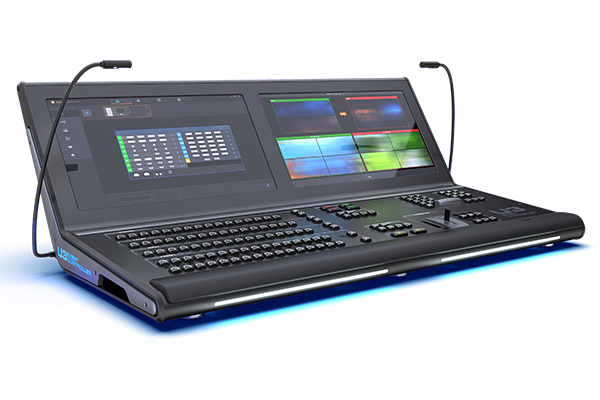

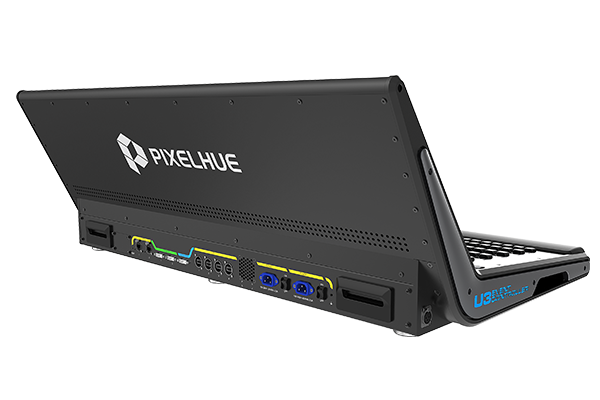

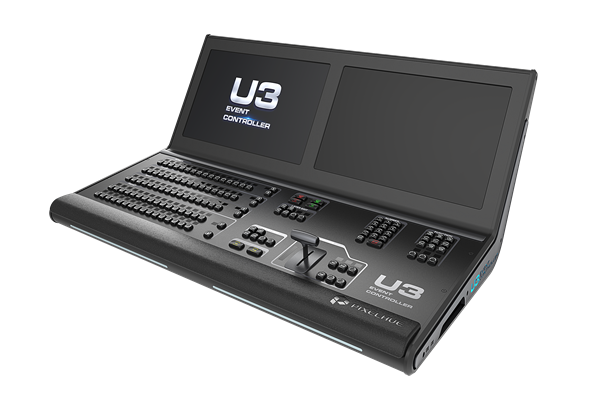

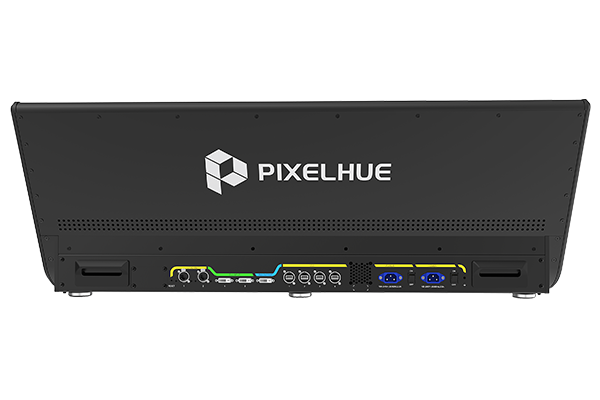

The U3 is a live event controller developed by PIXELHUE. With integrated intelligent, highperformance event management software Triton, the U3 is capable of receiving, processing, and monitoring multiple inputs and outputs at your fingertips. The U3 can simultaneously control up to eight Flex-View Event Presentation Switchers to realize synchronized operations on multiple switchers, greatly simplifying your on-site deployment and bringing more convenience and ease to your event. The U3 undoubtedly has become an ideal video operating tool for a wide range of events today, such as large live conferences, various interactive live shows, music tours, and immersive art exhibitions.
Specifications
| Model | U3 |
|---|---|
| Form Factor | Mid-size live console with rack-mount handles |
| Position in Range | Entry-tier U-Series console |
| Dimensions | 1100 × 674.8 × 388.8 mm (43.3 × 26.6 × 15.3 in) |
| Weight | 32 kg net (84 kg with flight case) |
| Power | Dual-backup PSU, 100-240V, 115 W max |
| Operating Temp | 0 to 50 °C |
| Acoustic Noise | 50 dB front / 50 dB rear |
| Best For | Mid-size live events and rental staging that want true U-Series workflow without flagship cost |
Need help configuring the U3?
Our engineering team will help spec out inputs, outputs, and accessories for your project. Same-day shipping on stocked units from our Florida warehouse.
Talk to an Engineer
